Medical Thermoform Tray Leak Detection

Non- Destructive Testing of Medical Thermoform Trays - “Test thermoform trays-on-the-fly”
Performs ASTM F 2338-09
Records “Package-Assurance” Data

This medical thermoform tray leak detection system incorporates modi­fications to a thermoform tray rotary sealer. It adds an upper platen drive mechanism that applies vacuum to thermoform tray samples for evaluation of vacuum decay or loss. The station compares known “good thermoform tray packages” with a standard vacuum loss through transmittance across the “Tyvek lid stock” to a variation of greater loss due to a failure in the seal area itself. This base option will include an upgraded vacuum system and surge tank along with individual sensor systems for monitoring drops in vacuum related in inches of mercury and millibars. System will include an upgrade of the rotary sealer itself to include; programmable controller, and operator interface screen as well as job memory log for retaining the parameters on various package designs.


• 100% inspection of every thermoform tray - every package is tested

• Faster than off-line testing

• Quality report for each package

• Reduces package handling

• No wasted packaging or products – non-destructive testing of thermoform trays

• Also seals standard blisters & trays

Thermoform Medical Tray Leak Detection

Click here for information on thermoformed  trays.

thermoform tray leak detection equipment

Non-destructive leak detection for medical thermoform trays - seal integrity

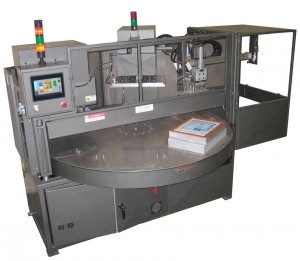

Thermoform Medical Tray Leak Detection with Rotary Blister Sealer
