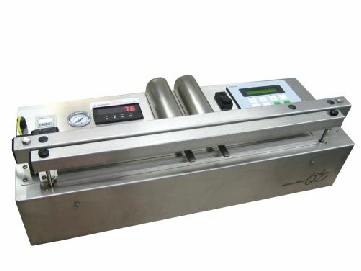

Medivac - medical vacuum heat sealer

20” or 30” heat seal bars

HMI (operator interface) touch screen
• 16-color LCD display
• Memory 3.25 MB
• Display area: 4.65 inches x 3.25 inches
• Standard display includes process set points and real time data
Internal PLC
• 2 Milliseconds scan time
• PWM (pulse width modulation) 15.6 k to 41.7 kHz at resolution of 100
• Fast PID temperature control with auto tuning
• Phase control and synchronization for heater output control

• Process recipes (1-6 processes)
• Seal counter by process and or total
• Process variables password protected
• Variables include temperature, vacuum and purge timing
• Calibration/Validation ports
• RS-232 port for data logging and monitoring
• Digital high and low pressure with auto calibration
• Vacuum controlled by actual inches of mercury
• Purge controlled by actual pressure

Main menu touch screen

Medical validateable vacuum heat sealer. Dual snorkels with gas flush and touch screen control system
