medical form fill seal machinery

Medical form fill seal trim machine designed for high quality medical packaging of medical products by producing a ‘Surlyn soft bottom’ Tyvek pouch.  Bulky medical products such as tubing sets and surgical procedure kits can either be manually loaded or automatically loading into vacuum formed Surlyn and Tyvek pouches.

DESCRIPTION: The 25/200-FST Series are automatic form/fill/seal & trim types of inline packaging machinery designed to run: blister packs, portion packs, medical trays, unit dose packs, etc., and other packages requiring form/fill/seal & trim. Plastic film is formed into multiple #-up blisters/trays, operators load product into them, a lidstock is placed over the package, which is then heat sealed and die cut into individual packages and dispensed from the end of the machine. Sheet fed card stock or roll fed (random or registered preprinted may be used) lidstock such as: Tyvek, paper, foil, laminates, etc. may be used. Date code and specialized printing systems, as well as automatic product feeders can be easily added to this machine.

OPERATION: Roll-fed thermoplastic is unwound and indexed into the machine, which is then heated and formed by male, female or combination form tools. The formed parts are automatically indexed to a product loading area (operators may load product from both sides of machine), then advanced to a station where a lid can be placed over the top of the formed tray or package, then indexed to a seal station and heat sealed. The sealed package is then indexed to a trim station, where steel rule dies are used to die cut into individual packages (or perf rule can be used to produce perforations between the parts for tear-apart later), the parts are deposited on a take-off conveyor and the scrap web is rewound. Sequences are PLC controlled and can be set to pace the operator loading speeds to meet your production requirements.

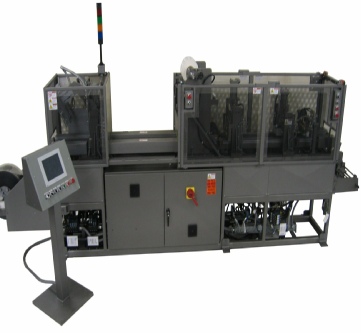

Medical form fill seal trim machine

designed for medical packaging automatic loading of medical products

automatic loading of medical form fill seal machines

Standard Form Area Sizes

5 x 9 inches

7 x 9 inches

10 x 10 inches

14 x 14 inches

16 x 28 inches

Custom sizes available
