Flat Product Feeding System - Inspection - vision systems - bar code verification

Inspection of bar codes for UDI compliance for medical packaging needs  - vision inspection of print quality, and other features that can be visually inspected

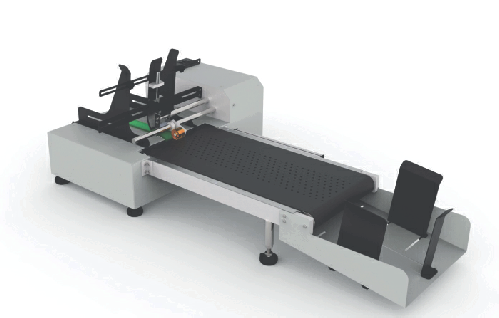

Table top flat product feeding system; flat products can be feed from a stack and inspected with vision inspection system

Please contact for equipment details and pricing information

flat product feeder for printing flat items like pouches with ink jet, laser, print and apply label

Feeder system, transporter - can have bar code verification and vision inspection integrated into vacuum conveyor system

The feed system features friction in-feed coupled with vacuum hold-down bed for secure and consistent handling of flat products such as pouches, lidstocks, paperboard sleeves, die cut labels, die cut parts, header & blister cards and other similar matte, polished or varnished products for presentation to Bar Code Readers OCR &/or Vision Systems to make a complete off-line verification product identification system. It can feed flat products up to 12” wide x 14” long; and up to 3/8” thick.


The bar code verifier will make a 100% inspection of each flat product.  A Bar Code Verifier will read the Bar Code that was entered and actually do a verification of the attributes (density, type, spacing, width, etc.) and Grade it as an A,B,C, D or F.


A more comprehensive vision inspection system breaks down the Vision Inspection of the desired copy in up to 4 Quadrants so that the customer can isolate up to four sections of the read area for four separate vision inspections.

Net Weight:                                        140 lbs.

Dimensions:                                       36” L x 20” W x 22" H

Vacuum Feed Bed:                            Standard

Electrical Requirements:                 110/220 VAC @ 50/60 Cy.

Speed:                                                Adjustable up to 200 ppm

Hopper Feed:                                     Friction Belt

Product Size:                                      2” x 2” up to 12” x 12” Std.

           Product Thickness:                           0.004” - 0.375”
